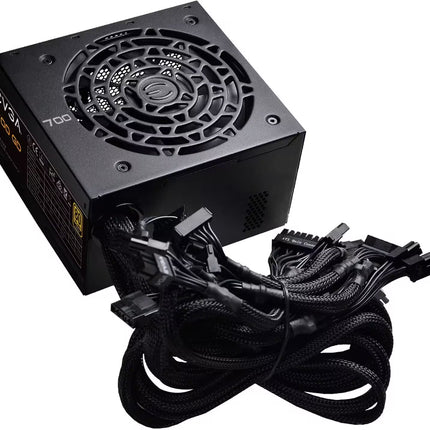

Here are the key technical specifications for the EVGA 700 GD (100-GD-0700-V1) 80+ Gold Power Supply:
General Specifications
-
Brand / Model: EVGA 700 GD
-
Part Number: 100-GD-0700-V1
-
Condition Grade: Used Grade A
-
Total Output Power: 700 W
-
Efficiency Rating: 80 PLUS Gold (up to 90% efficiency under typical loads)
-
Form Factor: ATX12V / EPS12V
-
Cable Type: Non-Modular (Hardwired, sleeved black cables)
Power Output Characteristics
-

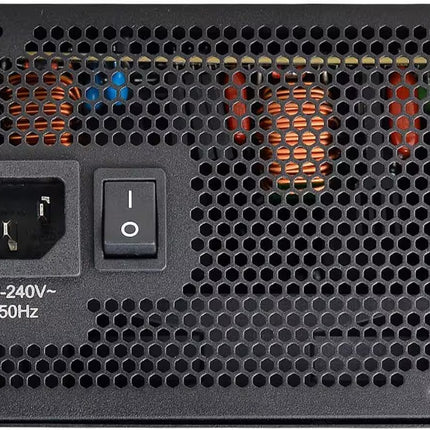

Input Voltage Range: 100 – 240 VAC (Full Range)
-
Input Current: 10A – 5A
-
Input Frequency: 50 – 60 Hz
-
Power Factor Correction (PFC): Active PFC
-
+12V Rail Design: Single +12V Rail (58.3A output / 699.6W max capacity)

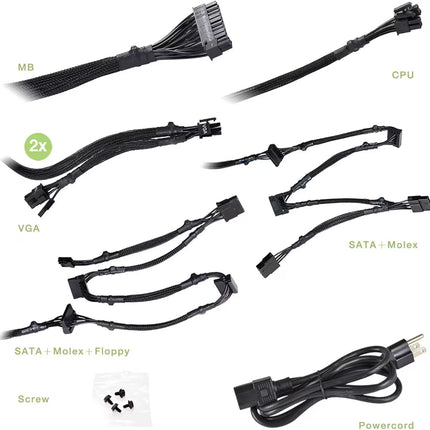

Cables & Connectors
-
24-Pin ATX Main Power: 1x (20+4 Pin)
-
8-Pin EPS / CPU Power: 1x (4+4 Pin)
-
8-Pin PCIe Power: 4x (6+2 Pin)
-
SATA Connectors: 6x
-
4-Pin Peripheral (Molex): 3x
-
Floppy Drive Adapter: 1x
Cooling & Physical Features
-
Fan Size: 120mm Sleeve Bearing Fan
-
Dimensions (H x W x L): 86 mm x 150 mm x 140 mm
-
Weight: ~4.5 lbs (2.04 kg)
Built-in Electrical Protections
-
OVP (Over Voltage Protection)
-
UVP (Under Voltage Protection)
-
OPP (Over Power Protection)
-
OCP (Over Current Protection)
-
SCP (Short Circuit Protection)
-
OTP (Over Temperature Protection)
